The Importance of Bentonite in Horizontal Directional Drilling (HDD)

The Importance of Bentonite in Horizontal Directional Drilling (HDD)

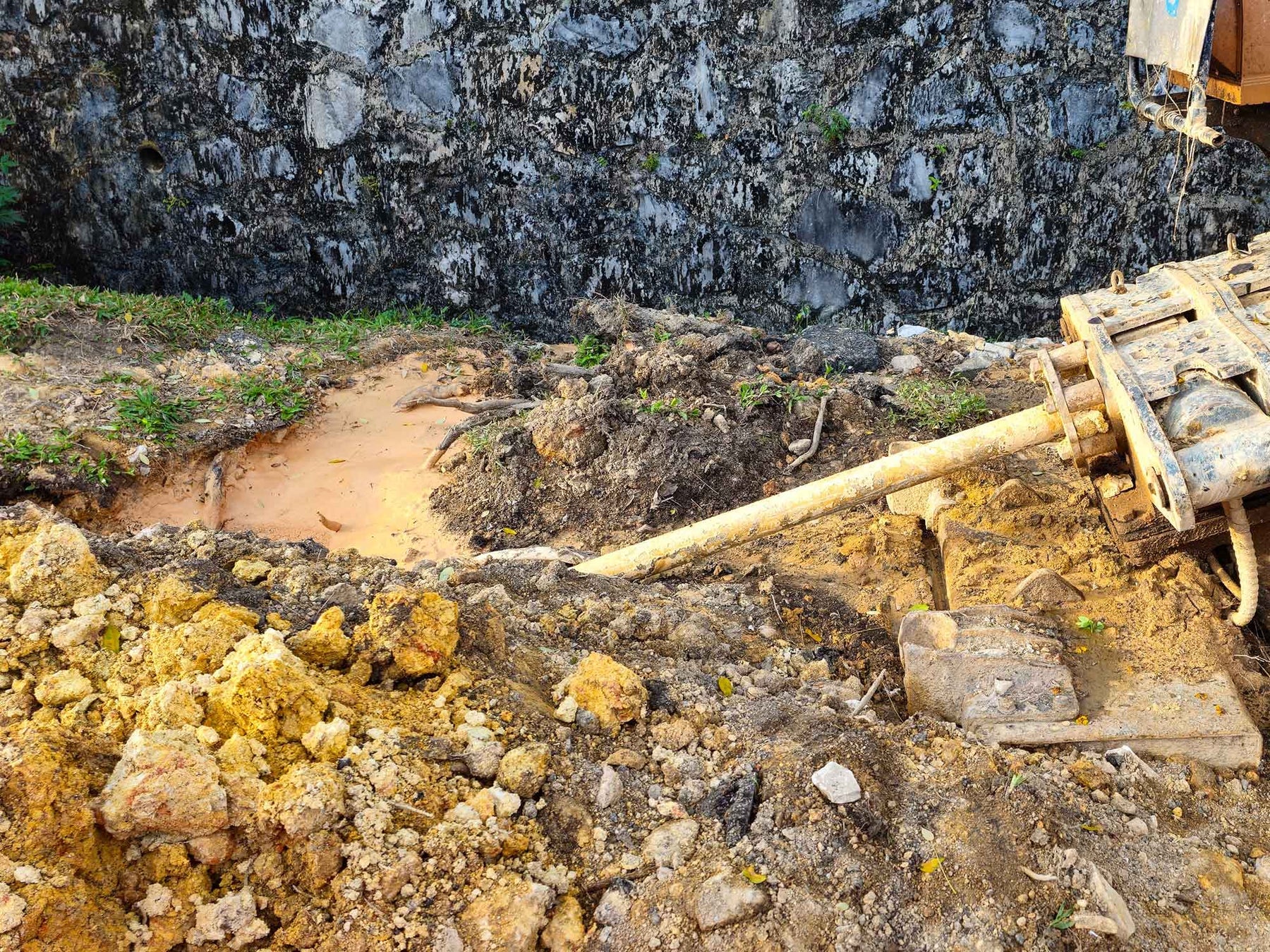

Horizontal Directional Drilling (HDD) is a trenchless technology method used to install underground pipes, conduits, or cables along a pre-determined bore path by using a surface-launched drilling rig. Unlike traditional excavation methods, HDD is minimally invasive, making it a preferred option for crossing roads, rivers, and environmentally sensitive areas. HDD involves three main stages: drilling a pilot hole, enlarging the borehole (reaming), and pulling the pipe or conduit through the borehole. Throughout this process, drilling fluids play a crucial role, with bentonite being the most commonly used.

Bentonite, a naturally occurring clay composed primarily of montmorillonite, is often selected for drilling fluid in HDD due to its unique properties. When mixed with water, bentonite forms a slurry that has several functions essential to the success of the drilling operation. This paper explores why bentonite is indispensable in HDD, covering its key properties, functions, and the challenges that arise without its use.

Properties of Bentonite

Before delving into the reasons bentonite is used in HDD, it's important to understand its physical and chemical properties, which contribute to its widespread use:

  1. Hydration Capacity: Bentonite has a high capacity to absorb water, swelling up to several times its dry volume. This swelling property is essential for creating a gel-like consistency when bentonite is mixed with water.

  2. Thixotropic Behavior: Bentonite slurry exhibits thixotropic behavior, meaning it behaves as a liquid when agitated but solidifies when static. This characteristic allows the fluid to stabilize the borehole while drilling, as it can flow easily through the drill pipe but solidify around the walls of the hole when not in motion.

  3. Viscosity: The viscosity of bentonite slurry helps in suspending cuttings and transporting them out of the borehole, preventing clogging and facilitating smoother operations.

  4. Gel Strength: Bentonite has good gel strength, meaning the slurry can form a gel when at rest, helping to hold the drill cuttings in suspension when circulation stops.

  5. Filtration Control: Bentonite helps in controlling the filtration rate of the drilling fluid into the surrounding formation by forming a filter cake on the borehole walls. This cake helps prevent fluid loss to the surrounding formation.

  6. Plasticity: The plasticity of bentonite ensures it can be molded into various shapes and can resist deformation, which is critical in maintaining borehole integrity.

These unique properties of bentonite make it highly effective as a drilling fluid in HDD.

Functions of Bentonite in HDD

  1. Stabilizing the Borehole

One of the most critical functions of bentonite in HDD is its ability to stabilize the borehole. When drilling through various soil types, such as sand, gravel, or clay, there is a risk of the borehole collapsing. Bentonite, with its thixotropic properties, forms a protective gel-like layer on the walls of the borehole, preventing loose soils from falling into the hole. This is especially important when drilling in unconsolidated or unstable formations.

The stabilization provided by bentonite also reduces the likelihood of borehole collapse during pipe installation, minimizing the risk of project delays and costly repairs.

  1. Suspending and Transporting Drill Cuttings

During the drilling process, the drill bit cuts through soil and rock, generating cuttings that need to be removed from the borehole. Bentonite's viscosity and gel strength allow it to suspend these cuttings in the drilling fluid, ensuring that they are transported out of the borehole and to the surface. If the cuttings are not properly suspended and removed, they can accumulate at the bottom of the borehole, leading to stuck pipe issues, blockages, or even the need to abandon the hole altogether.

Effective removal of cuttings also helps in maintaining the stability of the borehole, reducing the chances of collapse and ensuring that the drilling process can proceed smoothly.

  1. Reducing Friction and Torque

Bentonite also plays a crucial role in reducing friction between the drill pipe and the borehole walls. As the drill pipe rotates and moves through the borehole, friction between the pipe and the soil can generate excessive torque, which can slow down the drilling process or even cause equipment failure. The lubrication properties of bentonite help to reduce this friction, allowing for smoother and more efficient drilling operations.

In addition to reducing torque, bentonite also helps to minimize wear on the drilling equipment, prolonging the lifespan of the drill bit and other components.

  1. Cooling and Lubricating the Drill Bit

The drill bit used in HDD generates significant heat as it cuts through soil and rock. If this heat is not properly managed, it can cause the drill bit to overheat, reducing its effectiveness and potentially leading to equipment failure. Bentonite slurry helps to cool the drill bit by absorbing and dissipating the heat generated during drilling.

Additionally, the lubricating properties of bentonite reduce the friction between the drill bit and the soil, further enhancing the efficiency of the drilling process and prolonging the life of the equipment.

  1. Preventing Fluid Loss

When drilling through porous formations, there is a risk of the drilling fluid being absorbed into the surrounding soil, which can result in a loss of fluid circulation and destabilization of the borehole. Bentonite helps to prevent fluid loss by forming a filter cake on the walls of the borehole. This filter cake acts as a barrier, preventing the drilling fluid from being absorbed into the surrounding formation while still allowing for the removal of cuttings.

By maintaining fluid circulation and preventing fluid loss, bentonite ensures that the drilling process remains efficient and that the borehole remains stable throughout the operation.

  1. Pressure Management and Borehole Stability

Another critical aspect of bentonite’s role in HDD is its ability to manage pressures in the borehole. Proper pressure control is vital to preventing blowouts or loss of circulation in HDD operations. Bentonite helps create an impermeable layer along the borehole wall, which prevents excessive drilling fluid from escaping and helps regulate pressure. The consistent pressure inside the borehole supports the structural integrity of the surrounding formation, ensuring it doesn't cave in.

Challenges Without Bentonite

While it's theoretically possible to conduct HDD without bentonite, the challenges and risks involved would make it impractical. Without bentonite, several significant problems would arise:

  1. Borehole Instability: Without bentonite, it would be difficult to stabilize the borehole, especially in loose or unconsolidated formations. This could result in borehole collapse, requiring costly re-drilling or even project abandonment.

  2. Inefficient Cuttings Removal: Bentonite's ability to suspend and transport cuttings is essential for maintaining borehole cleanliness. Without it, cuttings would accumulate in the borehole, potentially causing blockages and equipment damage.

  3. Increased Friction and Equipment Wear: Without bentonite’s lubricating properties, friction between the drill pipe and the borehole walls would increase, leading to higher torque, slower drilling progress, and increased wear on the drill bit and other components.

  4. Fluid Loss and Formation Damage: In porous formations, the absence of bentonite’s filter cake would result in significant fluid loss, destabilizing the borehole and potentially damaging the surrounding formation. This could lead to reduced efficiency, increased costs, and environmental risks.

  5. Higher Environmental Impact: Bentonite is a natural, non-toxic substance that is widely used in drilling fluids due to its minimal environmental impact. If alternative drilling fluids were used without bentonite, there could be an increased risk of environmental contamination.

  6. Greater Difficulty in Crossings: HDD is often used for drilling under obstacles like rivers, roads, and sensitive ecosystems. Without bentonite’s stabilizing and pressure-management properties, achieving successful crossings would be far more challenging and prone to failure.

Conclusion

Bentonite is an essential component in Horizontal Directional Drilling due to its unique properties that ensure the stability and efficiency of the drilling process. Its ability to stabilize boreholes, suspend and transport cuttings, reduce friction, cool and lubricate the drill bit, and prevent fluid loss makes it indispensable for HDD operations. Without bentonite, the risks of borehole collapse, equipment failure, and environmental impact would significantly increase, making HDD less viable as a trenchless technology.

The role of bentonite in HDD highlights the importance of choosing the right drilling fluid for the job, and the benefits it provides in terms of safety, efficiency, and environmental sustainability cannot be overstated. Bentonite remains a cornerstone of HDD operations, ensuring successful installations even in challenging geological conditions.
