Underground Magnetics Mag X GEO

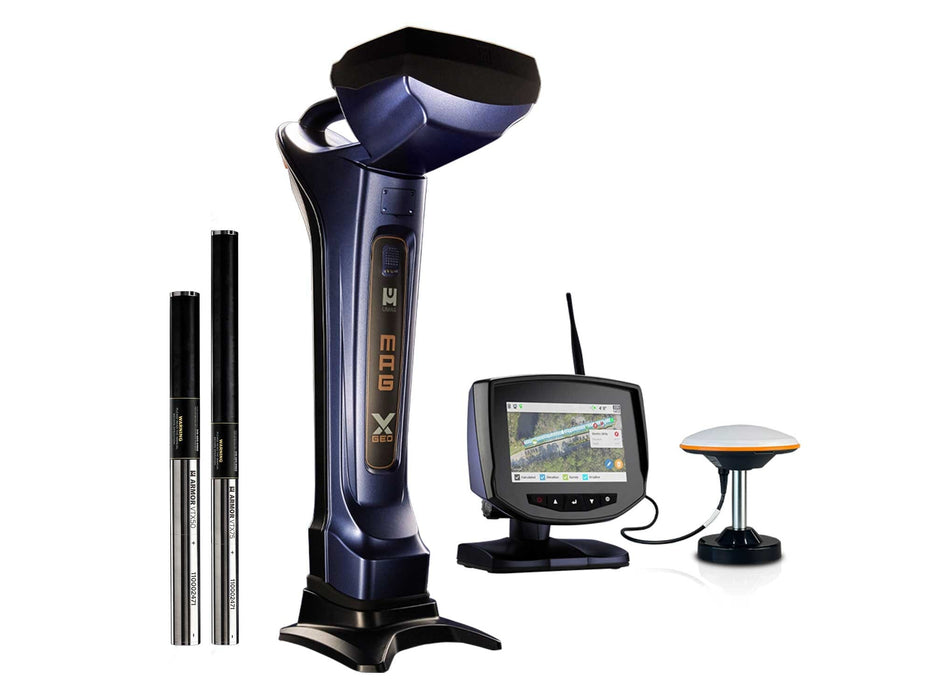

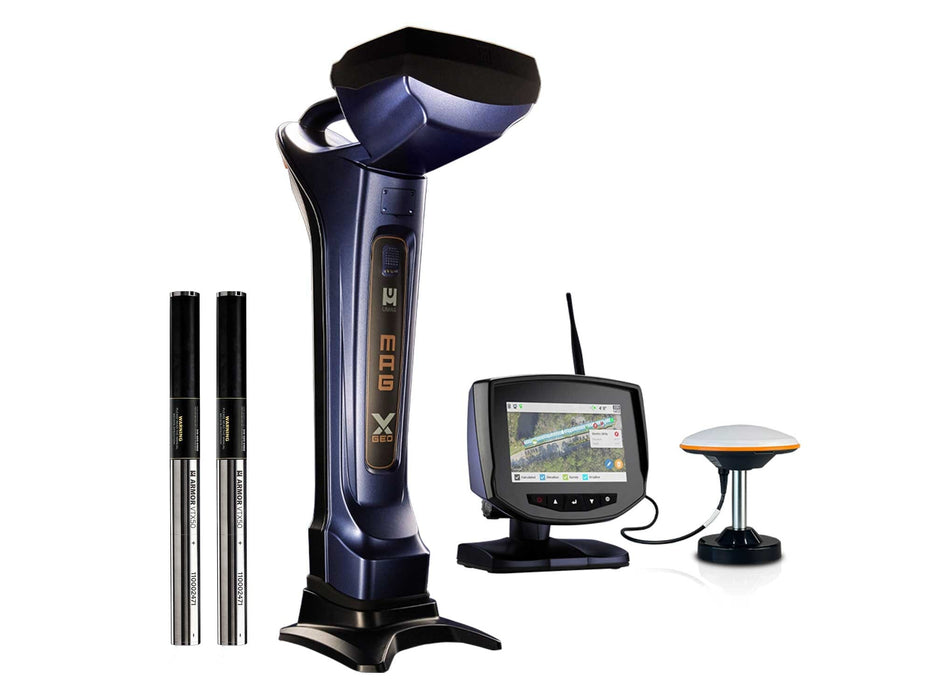

Mag X GEO System
Advanced HDD Locating System with GPS Data Logging and Bore Guidance
Bore smarter, not harder with the Mag X GEO System. Built on a proven locating platform, the Mag X GEO combines intuitive operation with advanced GPS data logging, real-time bore tracking, and powerful steering tools to help contractors improve accuracy, efficiency, and jobsite performance.

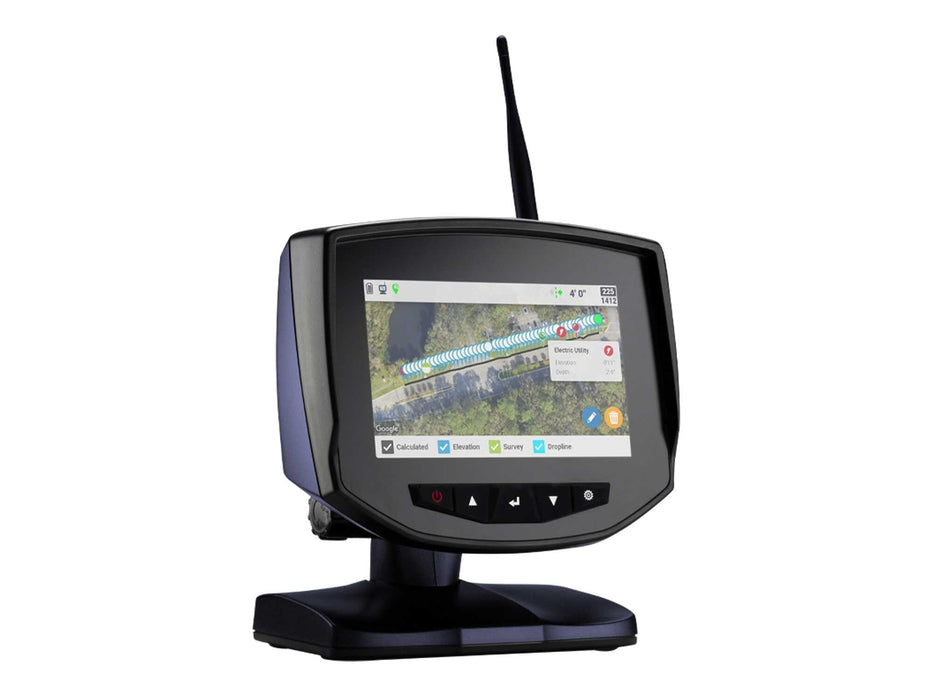

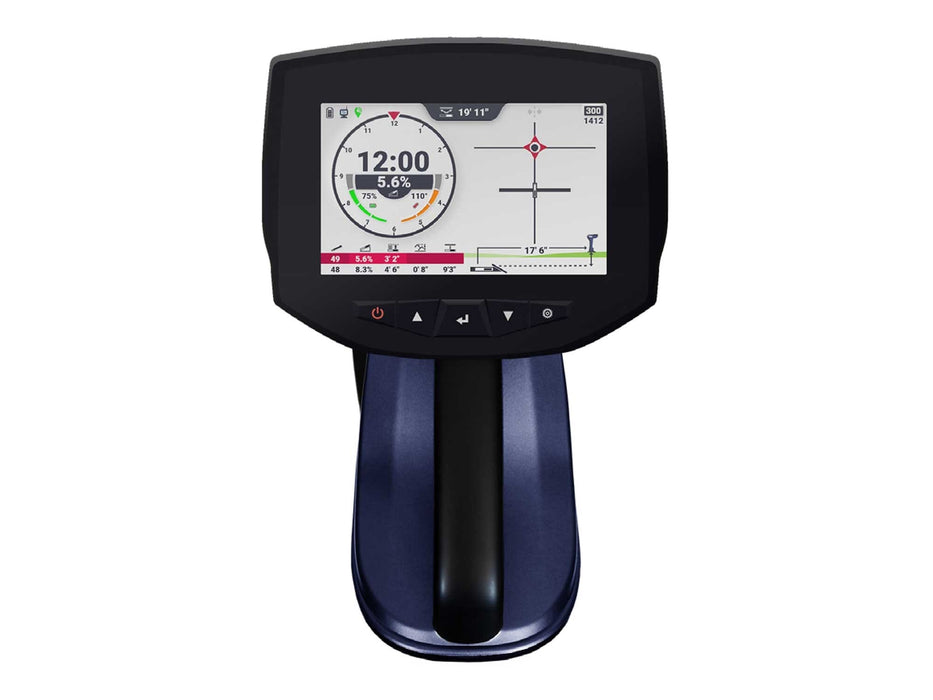

Featuring a 7-inch color touchscreen, the system gives operators clear, easy-to-read data at a glance, while tactile multi-function buttons provide fast access to essential features through simple fly-up menus. Designed for real jobsite conditions, the Mag X GEO helps crews stay on target, reduce manual reporting, and keep projects moving.
Precision GPS Data Logging for HDD Contractors
The Mag X GEO makes it easy to capture and manage critical bore data throughout the job. Log each rod’s pitch, depth, roll, temperature, and GPS location while documenting exposed utilities as you go.
With RTK-enabled GPS accuracy of 1–3 cm, the system delivers highly precise positioning data, including elevation, to support better bore planning, tracking, and reporting. Rod-by-rod metrics are automatically recorded, reducing paperwork and minimizing post-job cleanup.
GPS Data Logging Features
- RTK-enabled GPS with 1–3 cm accuracy
- Full GPS tracking, including elevation data
- Automatic rod-by-rod data recording
- Log pitch, roll, temperature, depth, and GPS position
Real-Time Bore Tracking and On-the-Fly Functionality
Monitor drilling progress in real time with multiple visual views that help operators make fast, informed decisions in the field. The Mag X GEO offers Overhead Aerial View, Side Profile Chart View, and Rod Table View so crews can clearly understand bore path progress at every stage.
Integrated guidance tools such as Bore-To Steering, GPS Dropline, and Pitch Guide help operators maintain direction, control depth, and align with target locations more accurately.
On-the-Fly Tools and Views
- Overhead Aerial View
- Side Profile Chart View
- Rod Table View
- Bore-To Steering
- GPS Dropline
- Pitch Guide
Better HDD Reporting and Utility Documentation

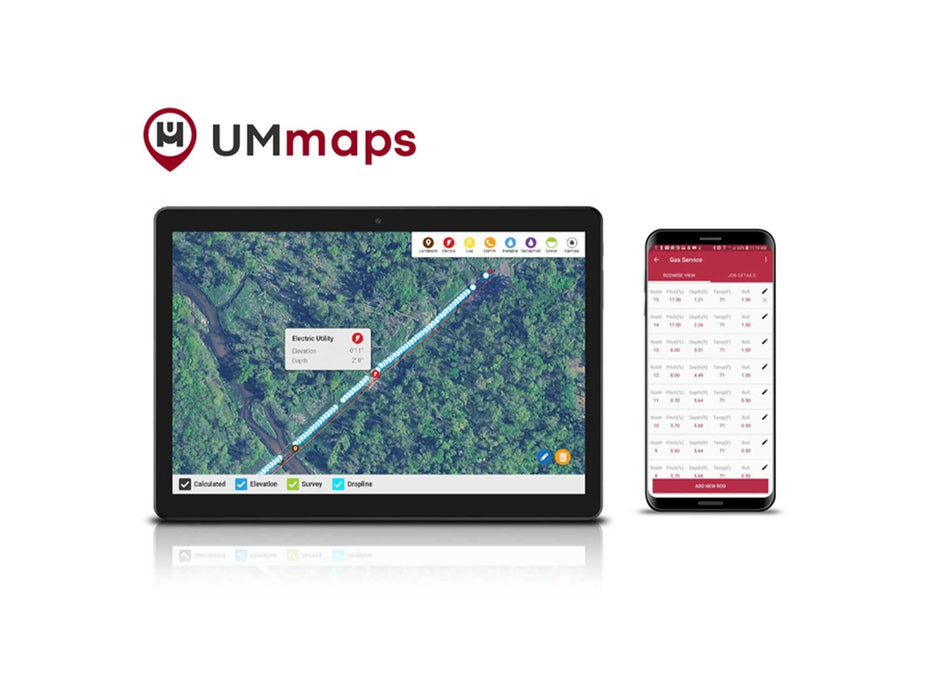

The Mag X GEO simplifies documentation and reporting directly from the receiver. Operators can add utility crossings with type, GPS coordinates, and depth, creating more complete job records in the field.
Reports can be generated, shared, and synced directly from the receiver, making project data easier to access for crews, managers, and customers. With real-time project monitoring, the Mag X GEO helps improve visibility from start to finish.
Reporting Features
- Add utility crossings with type, GPS, and depth
- Generate and share reports directly from the receiver
- Sync project data for streamlined reporting
- Enable real-time project monitoring
Built for Accuracy, Efficiency, and Real Jobsite Demands
The Mag X GEO System is designed for contractors who need an easy-to-use HDD locating system without sacrificing advanced functionality. From GPS-guided bore path control to real-time project visibility and reporting, the Mag X GEO helps crews work faster, drill more accurately, and document every job with confidence.
Boost accuracy and efficiency with one locating system built for the way directional drilling crews really work.
